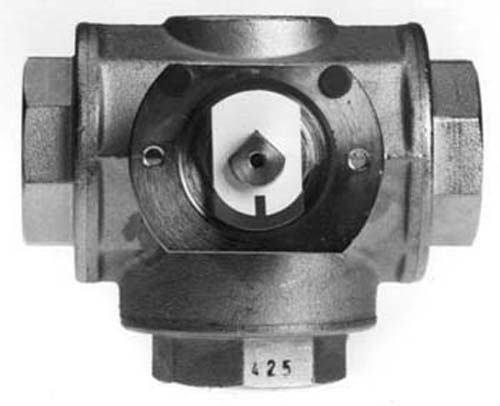

3-PORT SCREWED FEMALE BALL VALVES PN 6 (-15...+120 °C)   XLG 3..
Path - First Page - Products - Ball, butterfly, slipper - XLG 3

 APPLICATION

Designed for zoned, solar, DHW production, chilled water, etc plants.

FEATURES

• Chromed brass body and ball.

• Teflon and Viton seals.

• Fluid temperature:

  • +5...+120 °C (With CRB ..., CVC ... e CVH ...)

  • up to ­15 °C (With CVC /T ... e CVH /T ...).

					Suitable actuator
Code		DN	Kvs (1) - m3/h		CRB ... - CVC ...	CVH 11.	CVH 63. / 21. / 05.	Data sheet
					(bar) (2)	(bar) (2)	(bar) (2)
XLG 315		1/2"	16.3	1.5	6	6	6	M 916
XLG 320		3/4"	29.5	1.8	6	6	6
XLG 325		1"	43	3.9	6	6	6
XLG 332		1"1/4	89	7.9	6	6	6
XLG 341		1"1/2	160	14.8	-	6	6
XLG 351		2"	265	24.5	-	-	6

• (1) : Kvs ­ Flow coefficient: Flow in m³/h with valve open and pressure drop of 100 kPa. - 100 kPa = 10 mWG = 1 bar

• (2) : bar ­ Maximum pressure differential (∆p max) permitted by actuator.

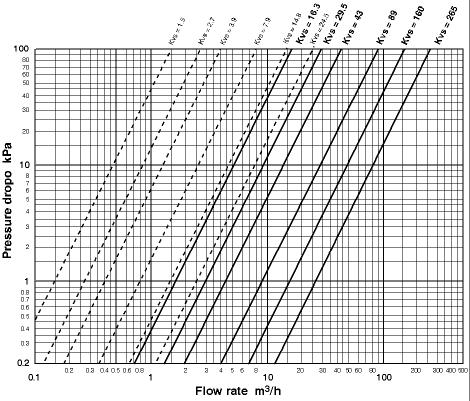

PRESSURE DROP IN BALL VALVES
