3- AND 4-PORT SLIPPER & BUTTERLY VALVES PN 6 (10 ... 110 C)

VSG/F ... - VFG/F ...

 click on picture to enlarge click on picture to enlarge

 Path - First page - Products - Ball, butterfly, slipper - VSG/F - VFG/F

APPLICATION

Used as mixing or diverting valves to control temperature of circulating water in heating plants.

FEATURES

  • Body and rotor in GG25 cast iron.

  • Spindle in stainless steel.

  • Connections DN 3/4" ... 2" threaded female, DN 40 ... 150 flanged.

  • Rotation angle: 90°.

  • Linear control.

  • Let by: ≤ 1.5 % Kvs.

            Suitable actuators
Code   DN Kvs (1) - m3/h Rotor (3) Length. (4) - mm CVC ... CVH ... CVF ... Data sheet
            (bar) (2) (bar) (2) (bar) (2)

3-port threaded

  inches
VSG 320   3/4" 13 slipper 130 0.3 0.5 - M 931
VSG 325   1" 13 slipper 130 0.3 0.5 -
VSG 332   1"1/4 19 slipper 142 0.2 0.5 -
VSG 340   1"1/2 29 slipper 160 0.2 0.5 -
VSG 350   2" 57 slipper 190 0.2 0.5 -

VFG 320   3/4" 13 butterfly 130 0.3 0.5 - M 931
VFG 325   1" 13 butterfly 130 0.3 0.5 -
VFG 332   1"1/4 19 butterfly 142 0.2 0.5 -
VFG 340   1"1/2 29 butterfly 160 0.2 0.5 -
VFG 350   2" 57 butterfly 190 0.2 0.5 -

3-port flanged

  mm
VSF 340   40 29 slipper 180 0.2 0.5 - M 931
VSF 350   50 57 slipper 200 0.2 0.5 -
VSF 365   65 81 slipper 230 - 0.4 -
VSF 380   80 170 slipper 250 - 0.4 -
VSF 3100   100 240 slipper 280 - 0.3 0.5 (5)
VSF 3125   125 470 slipper 300 - - 0.5
VSF 3150   150 700 slipper 350 - - 0.5

VFF 340   40 29 butterfly 180 0.2 0.5 - M 931
VFF 350   50 57 butterfly 200 0.2 0.5 -
VFF 365   65 81 butterfly 230 - 0.4 -
VFF 380   80 170 butterfly 250 - 0.4 -
VFF 3100   100 240 butterfly 280 - 0.3 0.5 (5)
VFF 3125   125 470 butterfly 300 - - 0.5
VFF 3150   150 700 butterfly 350 - - 0.5

4-port threaded

   inches
VFG 420   3/4" 13 butterfly 130 0.3 0.5 - M 931
VFG 425   1" 13 butterfly 130 0.3 0.5 -
VFG 432   1"1/4 19 butterfly 142 0.2 0.5 -
VFG 440   1"1/2 29 butterfly 160 0.2 0.5 -
VFG 450   2" 57 butterfly 190 0.2 0.5 -

4-port flanged

   mm
VFF 440   40 29 butterfly 180 0.2 0.5 - M 931
VFF 450   50 57 butterfly 200 0.2 0.5 -
VFF 465   65 81 butterfly 230 - 0.4 -
VFF 480   80 170 butterfly 250 - 0.4 -
VFF 4100   100 240 butterfly 280 - 0.3 0.5 (5)
VFF 4125   125 470 butterfly 300 - - 0.5
VFF 4150   150 700 butterfly 350 - - 0.5

  • (1) : Kvs Flow coefficient: Flow in m3/h with valve open and pressure drop of 100 kPa. - 100 kPa = 10 mWG = 1 bar

  • (2) : bar Maximum pressure differential (∆p max) permitted by actuator.e.

  • (3) : Type of rotor;

    • For 3-port valves:

      • slipper = left or right lateral port always open.

      • butterfly = central port always open.

  • (4) : Length flange to flange.

  • (5) : Coupling possible only with AVF 171 linkage.

ACCESSORIES

FLANGES WITH NECK FOR FLANGED VALVES PN 6

  • PN6 UNI 2280

  • Packs containing1 flange and including seals, bolts, nuts and washers.

    Complete di :
Code   Seal Bolts (2-port) Bolts (3-and 4-port) Nuts Washers
  No. mm No. mm No. mm No. mm No. mm
AFC 040   1 85 x 45 x 2 0 - 4 12 M x 55 4 12 M 8 12
AFC 050   1 95 x 57 x 2 2 12 M x 80 4 12 M x 55 4 12 M 8 12
AFC 065   1 115 x 76 x 2 2 12 M x 80 4 12 M x 55 4 12 M 8 12
AFC 080   1 132 x 89 x 2 2 16 M x 100 4 16 M x 60 4 16 M 8 16
AFC 100   1 152 x 108 x 2 2 16 M x 100 4 16 M x 60 4 16 M 8 16
AFC 125   1 182 x 133 x 2 4 16 M x 120 8 16 M x 60 8 16 M 16 16
AFC 150   1 207 x 159 x 2 4 16 M x 120 8 16 M x 60 8 16 M 16 16
AFC 175   1 230 x 185 x 3 8 16 M x 140 - - 8 16 M 16 16
AFC 200   1 255 x 210 x 3 8 16 M x 140 - - 8 16 M 16 16

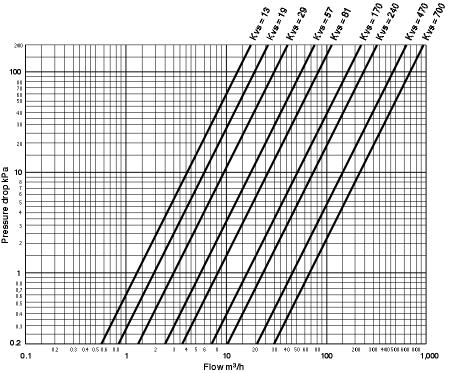

PRESSURE DROP IN 3-AND 4-PORT SLIPPER AND BUTTERFLY VALVES
