3-PORT FLANGED SEAT VALVES PN 6 (-10 ... 120 °C)

VL 3..

Path - First page - Products - Seat - VL 3

APPLICATION

Control valves for hot water max 120 °C or chilled min –10 °C (glycol content 30%).

FEATURES

Body in cast iron GG 25.
Spindle in stainless steel
Plug in brass.
Flanged connections PN 6 (ISO 7005/2)
Control:
- throughport = equal percentage.
- by pass = linear.
- Control ratio 50:1
Let by:
- throughport ≤ 0.05 % Kvs.
- by pass ≤ 1% Kvs.

				Suitable actuators
Code	DN mm	Kvs ⁽¹⁾m³/h	Run mm.	CLE 16. 11 s/mm		CLE 10. 7 s/mm			CLF 16. 11 s/mm		CLF 04. 3 s/mm			CEF U16.⁽⁴⁾ 11 s/mm		Data sheet
				bar ⁽²⁾	s ⁽³⁾	bar ⁽²⁾		s ⁽³⁾	bar ⁽²⁾	s ⁽³⁾	bar ⁽²⁾	s ⁽³⁾		bar ⁽²⁾	s ⁽³⁾
VL 314	15	2.5	15	6	165	6		105	6	165	6	45		6	165	M 947
VL 315	15	4.0	15	6	165	6		105	6	165	6	45		6	165
VL 320	20	6.3	15	6	165	4		105	6	165	6	45		6	165
VL 325	25	10	15	6	165	2		105	6	165	6	45		5	165
VL 332	32	16	15	3	165	1		105	6	165	5	45		2.5	165
VL 340	40	25	15	2	165	-		-	6	165	3	45		2	165
VL 350	50	40	15	1	165	-		-	3	165	2	45		0.5	165
				Suitable actuator
				CLG 32. 8 s/mm						CLG 16. 4 s/mm
				bar ⁽²⁾			s ⁽³⁾			bar ⁽²⁾			s ⁽³⁾
VL 365	65	63	20	4.5			160			3			80			M 947
VL 380	80	100	30	3			240			2			120
VL 3100	100	145	30	1.5			240			1			120

(1) : Kvs Flow coefficient: Flow in m³/h with valve open and pressure drop of 100 kPa. - 100 kPa = 10 mCA = 1 bar
(2) : bar Maximum pressure differential (∆p max) permitted by actuator.
(3) : s Time (seconds) necessary for actuator to make the complete valve run.
(4) : actuator with emergency closure.

ACCESSORIES

Code Description Power supply Valves VL 3..

ARS 104 Spindle heater for fluid temperatures from 10 to 0 °C. 24 V~ (20W) DN 15..50

ARS 114 Spindle heater for fluid temperatures from 10 to 0 °C. 24 V~ (20W) DN 65..100

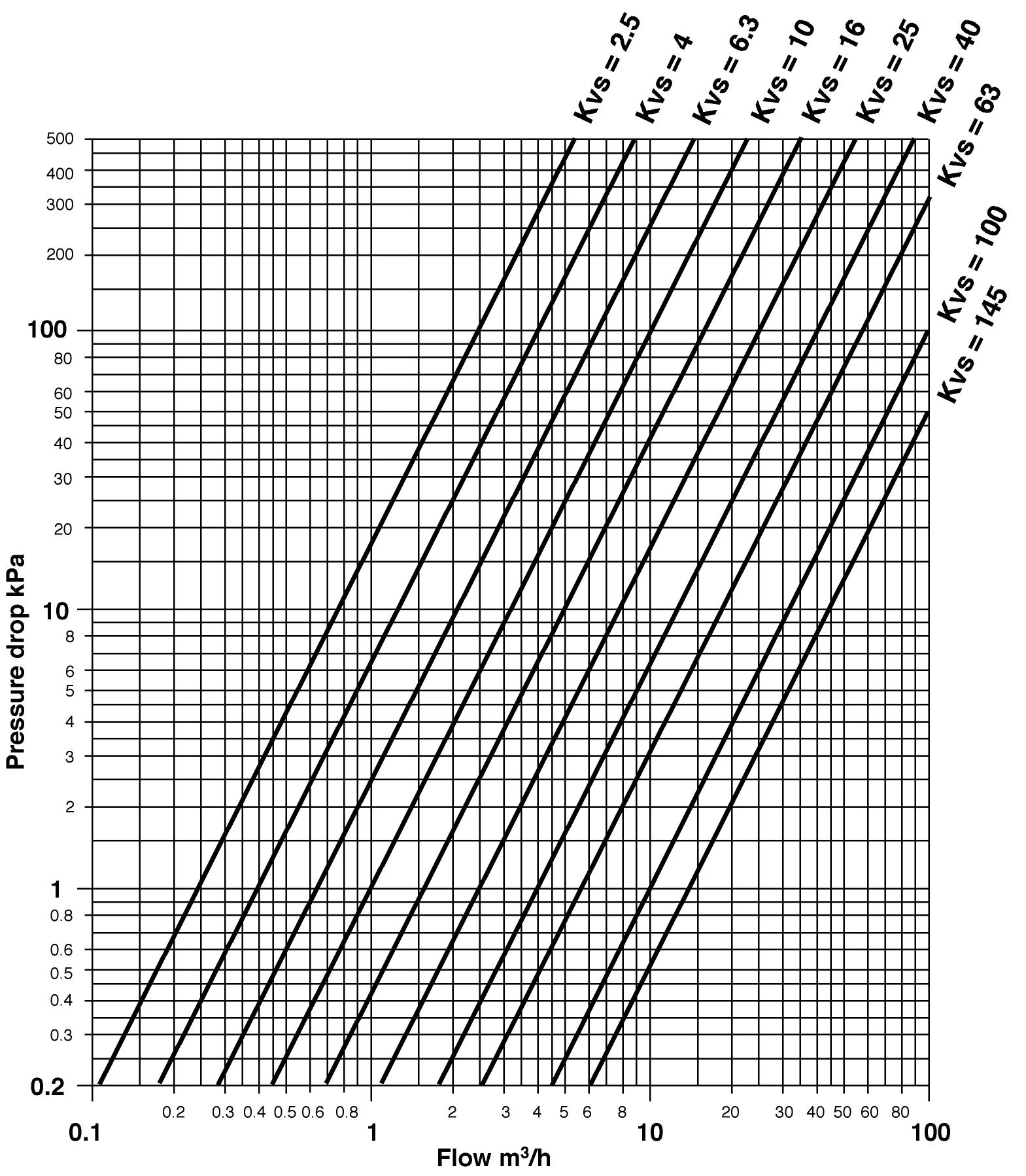

PRESSURE DROP IN VL 3.. SEAT VALVES
