2-PORT BALANCED PRESSURE FLANGED PN 25 (-10...230 °C) SEAT VALVES

VBS 2..

 click on picture to enlarge

 Path - First page - Products - Valves & Actuators - VBS 2

APPLICATION

Control valves for :

  • Hot water and superheatedwater, max. 230 °C,

  • Chilled water, min. ­10 °C (glycol max. 50%),

  • Steam, max. 7 bar absolute.

FEATURES

  • Body in spheroidal cast iron UNI ISO 1083-400-15.

  • Spindle, seat and plug in stainless steel AISI 303.

  • Flanged ends PN25.

  • Control: equal percentage.

  • Let by: 0.02% Kvs.

          Suitable actuators
Code   DN mm. Kvs (1) m3/h Run  mm. MVL ...

1.33 s/mm

MVA 064

1.33 sec./mm

 Data sheet
          bar(2) s(3) bar(2) s(3)
VBS 223   25 4 16,5 7 22 7 22 M 971
VBS 224   25 6,3 25 7 33 7 33
VBS 225   25 10 25 7 33 7 33
VBS 232   32 16 25 7 33 7 33
VBS 240   40 25 25 7 33 7 33
VBS 250   50 40 25 7 33 7 33
VBS 265   65 63 25 7 33 7 33

  • (1) : Kvs ­ Flow coefficient: Flow in m3/h with valve open and pressure drop of  100 kPa   - 100 kPa = 10 mWG = 1 bar.

  • (2) : bar ­ Maximum pressure differential (∆p max) permitted by actuator.

  • (3) : s ­ Time (seconds) necessary for actuator to make the complete valve run.

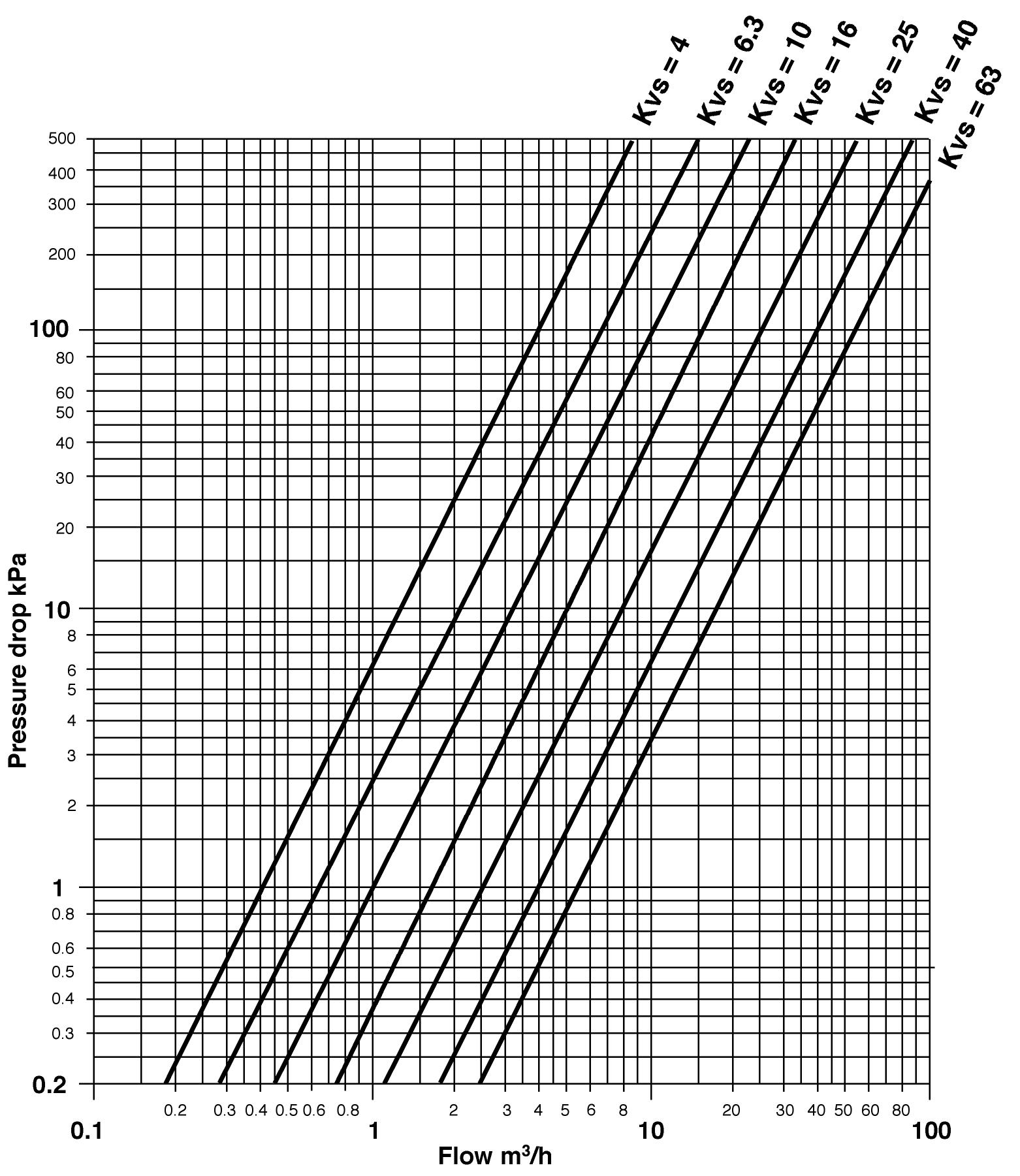

SIZING CHART FOR STEAM VALVES VBS
