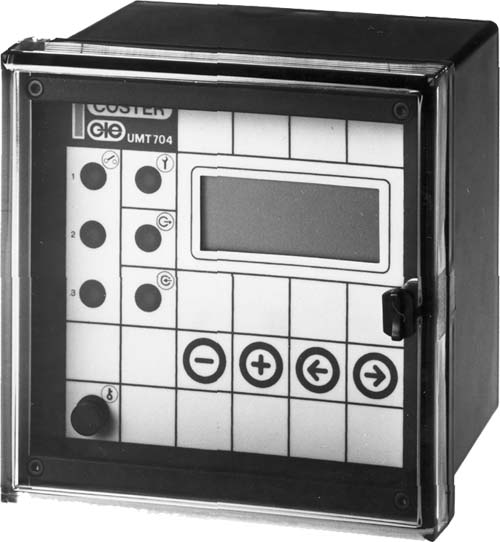

CENTRAL DISPLAY UNIT FOR COSTERZONE CONTROL SYSTEM

UMT 704

 click on picture to enlarge

 Path - First page - Products - Thermostats and ambient controllers - UMT 704

APPLICATION

"Costerzone" control supervisor for:

  • Displaying temperature values measured by room detectors.

  • Modifying settings and operating programmes for each single controller.

  • Controlling the remote RTB ... units by DTMF signals from digital telephones.

FEATURES

  • Power supply: 24 V ~.

  • Consumption 10 VA.

  • DIN 144 x 144 modular case.

  • Protection: IP 40.

  • 1 output for connection to remote controllers (max 239).

  • 1 RS 232 output for connection with a computer or modem.

  • 1 output for connection with a central bus or modem.

  • 1 Relay output for external alarm and 2 relay outputs for On-Off controls in relation to thermal demands.

Code   Description  Data sheet
UMT 704   Central display unit for "Costerzone" control system. B 510

ACCESSORIES

Code   Description  Inputs RS 232 Inputs Data sheet
MPF 612   Panel-mounting modem with DTMF. 1 1 T 325
