APPLICATION
Central control unit for heating and/or
cooling circuit pumps (max 6 ), in relation to thermal demand of the zones
concerned.
Several units may be connected to the same C-Bus
interface .
FEATURES
-
Power supply: 24 V ~.
-
Consumption: 10 VA.
-
DIN 105 x 115 modular case.
-
Protection: IP 40.
-
1
output for connection to remote controllers.
-
6 relay
outputs for control pumps.
Code |
|
Description |
Data sheet |

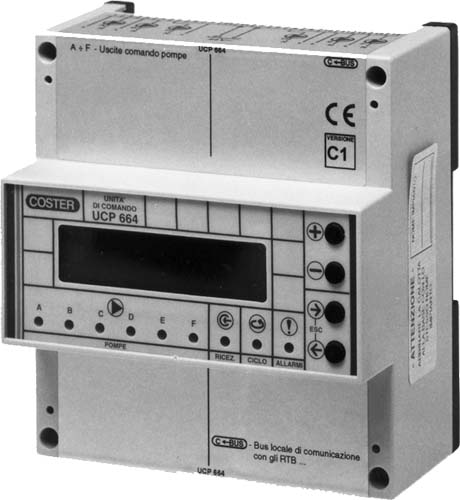

UCP 664 |
|
Pump control unit. |
B 515 |
|
