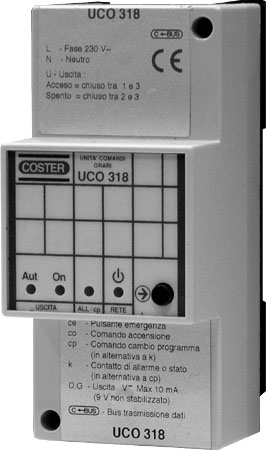

TIMED ON-OFF CONTROLS UNIT UCO 318
Path - First page - Product - Unit for Alarms, Status, Counts, Temperaures - UCO 318

APPLICATION

• Designed for ON-OFF control of one electrical device with timed programming and local remote controls and for acquiring one alarm or status signal.

• If no other devices are connected via to the modem it is possible to connect it directly to a GSM 713 modem by means of an ACB 232/S1 convertor cable.

• Can only be used with telemanagement systems via connection.

FEATURES

• Power supply: 230 V ~.

• Consumption: 3 VA.

• DIN 53 x 115 modular enclosure.

• Protection: IP 40.

• One 5 (1) A SPDT relay output.

• 3 On-Off inputs: one ON-OFF, one Emergency button, one alarm or status signal.
