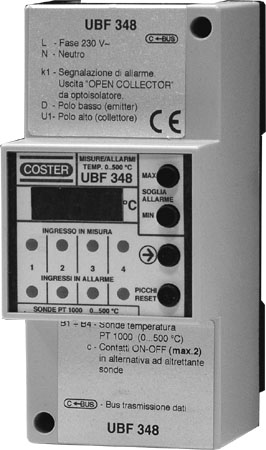

MEASUREMENT, ALARM & FLUE GAS RECORDER (ALARM FOR LOCKOUT FOR 4 BURNERS)

UBF 348

 click on picture to enlarge

 Path - First page - Products - Unit for Alarms, Status, Counts, Temperatures - UBF 348

APPLICATION

Permits recording four temperature measurements (0 ... 500 °C), with minimum and maximum thresholds and sending alarms to telemanagment systems via connection.

Option of deactivating alarms by means of one or two external switches (as alternative to same number of detectors).

FEATURES

  • Power supply: 230 V ~.

  • Consumption: 2 VA.

  • DIN 53 x 115 modular enclosure.

  • Protection: IP 40.

  • Four measurement inputs: Pt 1 kΩ (0 ... 500 °C).

  • Adjustable recording interval: 5 ... 240 minutes.

Code   Description  Data sheet
UBF 348   Unit for measurement, alarm & recording flue gas temperatures. T 256

ACCESSORIES
Code   Description Application range

Sensing element

 Data sheet
STF 001   Flue gas temperature detector. 0 ... 500 °C Pt 1 kΩ N 165
