ROOM TEMPERATURE DETECTORS

SAB ... - SCB ...

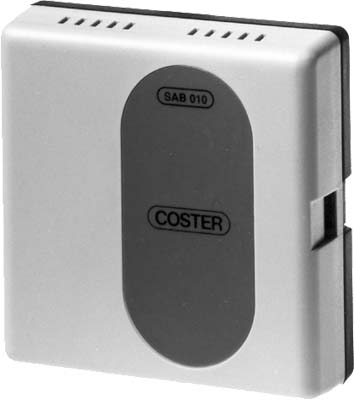

 sab 010 click on picture to enlarge     sab 010 click on picture to enlarge
scb 110 click on picture to enlarge  scb 110 click on picture to enlarge

 Path - First page - Products - Temperature and Humidity detectors - SAB / SCB

APPLICATION

In combination with the appropriate COSTER devices (essential) measure room temperature. Moreover, in some models (see 2 below) it is possible to adjust from the room itself the temperature previously set on the controller.

FEATURES

  • Operating range: 0 ... 40 °C.

  • Protection: IP 30.

Code   Description

Sensing element

Data sheet
SAB 010   In wall mounting case 80 x 80 x 32. NTC 10 kΩ N 111
SAB 010/V   In flush mounting module Vimar. NTC 10 kΩ
SAB 010/G   In flush mounting module Gewiss. NTC 10 kΩ
SAB 010/L   In flush mounting module Living. NTC 10 kΩ
SAB 010/LI   In flush mounting module Living International. NTC 10 kΩ
SAB 010/LG   In flush mounting module Living Light. NTC 10 kΩ
SAB 020   With double detector in wall mounting case 80 x 80 x 32. NTC 20 kΩ
SAB 011   With internal setting in wall mounting case 80 x 80 x 32. NTC 10 kΩ
SAB 210   With key + 1 hour in wall mounting case 80 x 80 x 32. NTC 10 kΩ
SCB 210   With adjuster and key + 1 hour in wall mounting case 80 x 80 x 32. NTC 10 kΩ
SCB 110/LG   With adjuster (­5 ... +5 °C) in flush mounting module Living Light NTC 10 kΩ
SCB 110   With adjuster (­5 ... +5 °C) in wall mountig case 80 x 80 x 32. NTC 10 kΩ N 111
SCB 110/V   With adjuster (­5 ... +5 °C) in flush mounting module Vimar NTC 10 kΩ
SCB 110/G   With adjuster (­5 ... +5 °C) in flush mounting module Gewiss NTC 10 kΩ
SCB 110/L   With adjuster (­5 ... +5 °C) in flush mounting module Living NTC 10 kΩ
SCB 110/LI   With adjuster (­5 ... +5 °C) in flush mounting module Living International NTC 10 kΩ
SRB 010   Black Ball Sensor NTC 10 kΩ
SAI 010   Irradiated sensor in 80 x 80 x 26 housing for wall mounting NTC 10 kΩ
SCI 110   Irradiated sensor + adjuster, in 80 x 80 x 32 housing for wall NTC 10 kΩ
