ELECTROMECHANICAL ROOM THERMOSTATSRTT 40. - RTS 434 |
|
|
|
Path - First page - Products - Thermostats and ambient controllers - RTT / RTS |
|||
APPLICATION
Regulation of ambient temperature by On-Off control of : burners, gas boilers, zone valves, pumps, etc.
Contact rating: 250 V, 10(2.5) A.
| Code | Type | Setting Range | Sum-Win | Dt° | Protection | Data sheet | |
| RTT 404 | SPDT. | 5 ... 30 °C | No | 0.6 °C | IP 30 | – | |
| RTT 405 | SPDT & 230 V warning light. | 5 ... 30 °C | No | 0.6 °C | IP 30 | – | |
| RTT 406 | SPST. | 5 ... 30 °C | Yes | 0.6 °C | IP 30 | – | |

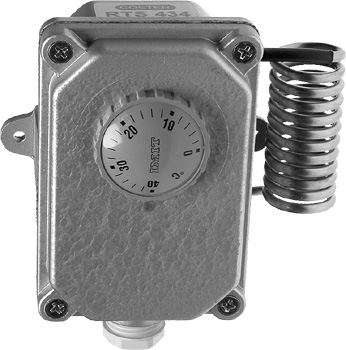

| RTS 434 | Watertight & SPDT. | 0 ... 40 °C | No | 2 °C | IP 53 | – |
