APPLICATION
Designed for compensated control of one
heating zone and for On-Off control of a DHW calorifier.
-
compatible.
Essential accessories:
-
1 outside detector.
-
1 heating flow detector.
Optional accessories:
FEATURES
-
Power supply: 230 V ~.
-
Consumption: 5 VA.
-
DIN 105 x 115 modular enclosure.
-
Protection: IP 40.
-
Digital programming by means of four
operating keys and alphanumeric display.
-
Automatic changeover GMT - BST.
-
Seven 24-hour programmes, two 7-day
programmes.
-
Compensated control of heating zone:
-
Modulating control of valve by
three-wire reversible actuator or On-Off burner in two stages. Control
heating pump in relation to timed events and thermal demand.
-
Minimum and maximum limits flow
temperature.
-
Manual correction of heating
curve origin to compensate for seasonal weather changes.
-
Ambient authority.
-
Eco Off.
-
Control boiler anticondensing
temperature (closure heating valve).
-
Remote control for modifying
timed programme in use (as alternative to input flue gases temperature and
On-Off alarm).
-
On-Off control temperature of auxiliary
zone (eg : production DHW) or timed On-Off control:
-
On-Off control with programme
timed events independent of heating.
-
DHW priority function (closure
heating valve so as to give precedence to DHW production).
-
Antibacteria function : once a
week at 70 °C for 90 minutes (for production DHW in storage tank).
Code |
|
Description |
Data sheet |

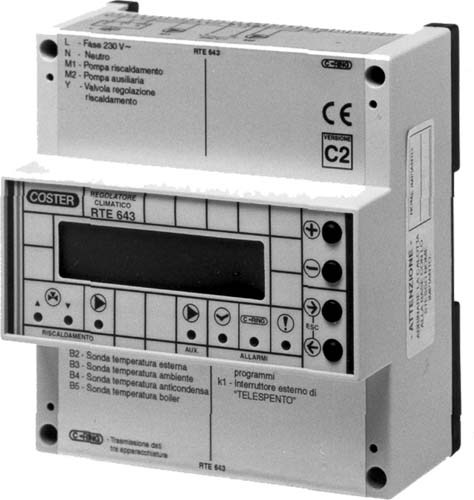

RTE 643 |
|
Compensating controller and DHW
production controller. |
B 222 |
DETECTORS & ACCESSORIES
Code |
|
Description |
Range |
Sensing element |
Data sheet |
SAE 001 |
|
Outside
temperature detector. |
-30 ...
40 °C |
NTC 1 kΩ |
N
120 |
SIH 010 |
|
Immersion
temperature detector. |
0 ...
99 °C |
NTC 10 kΩ |
N
140 |
SCH 010 |
|
Surface
temperature detector. |
0 ...
99 °C |
NTC 10 kΩ |
N
130 |
SAB 010 |
|
Room
temperature detector. |
0 ...
40 °C |
NTC 10 kΩ |
N
111 |
CDB 300 |
|
Remote
control for modifying programme in use. |
– |
– |
N
710 |
|
