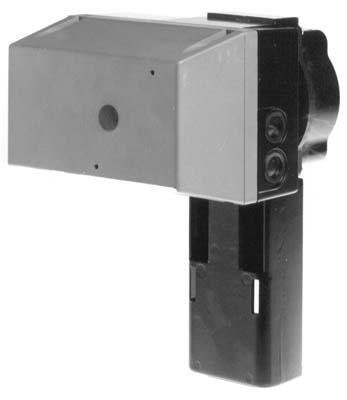

REVERSIBLE LINEAR ACTUATOR FOR  VBS - VBG VALVES WITH EMERGENCY SHUT OFF

MVA 064

 click on picture to enlarge

 Path - First page - Products - Valves & actuators - MVA 064

APPLICATION

Actuator with linear movement for operation of VBS ... - VBG ... seat valves.

FEATURES

  • Power supply: 230 - 24 V ~.

  • 3-wire electric control (Common, Opens, Closes).

  • Protection: IP 55.

  • Max. valve temperature 230 °C

      Valves (up to DN)
Code   Power supply V ~ (VA) Velocità s / mm Run max. mm Force N VBS ... VBG ... Data sheet
MVA 064   24 (15) 1.33 45 700 65 150 M 262

ACCESSORIES
Code   Description
FCV 002   2 auxiliary limit switches 6 (2) A for MVA ...
