REMOTE PANEL-MOUNTING MODEM

MPD 612

NOW OBSOLETE

 click on picture to enlarge

 Path - First page - Products - Modem Analogigue Lines, GSM & Units for Ethernet - MPD 612

APPLICATION

  • MPD 612 modem is used for connecting Coster controllers suitable for telemanagement to a telephone line so they can dialogue with a remote computer. It converts digital signals originating from the controllers into analogue signals for transmission along the telephone line (MODulation) and reconverts the analogue signals coming from the telephone line into digital signals to be sent to the controllers (DEModulation).

  • Thanks to the call discriminator function it is possible to share a telephone line with a telephone set or a fax or another modem.

  • Connects remote Coster devices via and/or RS 232 to analogue telephone line.

  • Includes discriminator for parallel telephone

FEATURES

  • Power supply: 230 V ~.

  • Consumption: 3,5 VA.

  • DIN 105 x 115 modular enclosure.

  • Protection: IP 40.

  • Transmission speed on line: 1,200 bit/s

Code   Description  Inputs RS232 Inputs Data sheet
MPD 612   Panel-mounting modem.

1

 1 T 325

ACCESSORIES

Code   Description  Data sheet

ACS 232



RS 232 cable with male DB 9.

 –
ALM 688   Back-up power supply. T 350

TCB 908



Tester for connections and telephone call-up.

 –

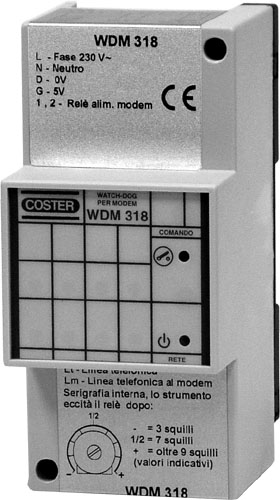

WDM 318   Modem protector in DIN 53 x 115 enclosure. T 351
