APPLICATION Compact
units for maintaining a constant temperature in DHW distribution circuits. Consist
of:
-
1 a three-port ball valve.
-
1 reversible electric actuator with
an electronic controller.
-
1 temperature detector with an NTC
10 kΩ sensing element incorporated in the valve.
FEATURES
-
Power supply: 230 V ~.
-
Protection: IP 55.
-
Consumption:
MAS 6.. = 6 VA; MAS 7.. = 9 VA.
-
Working pressure and maximum
differential: 6 bar.
-
Proportional band: ± 5 ... ± 20
°C.
Code |
|
DN |
Flow
rate l/min.
(1) |
Kvs
(2) m3/h |
Setting
range |
Data
sheet |
inches |
mm. |
MAS
615 |
|
1/2" |
15 |
40 |
2.5 |
30 ...
70 °C |
C 511 |
MAS
620 |
|
3/4" |
20 |
70 |
5 |
30 ...
70 °C |
MAS
625 |
|
1" |
25 |
130 |
9 |
30 ...
70 °C |
MAS
632 |
|
1"
1/4 |
32 |
180 |
13.5 |
30 ...
70 °C |
|
|
|
|
|
|
|
MAS 740 |
|
1"1/2 |
40 |
270 |
19.2 |
30 ...
70 °C |
MAS 750 |
|
2" |
50 |
390 |
28.9 |
30 ...
70 °C |

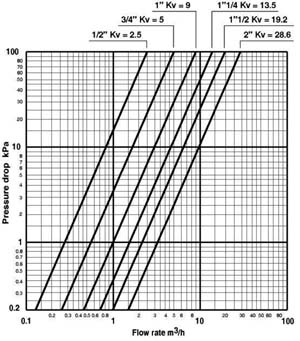

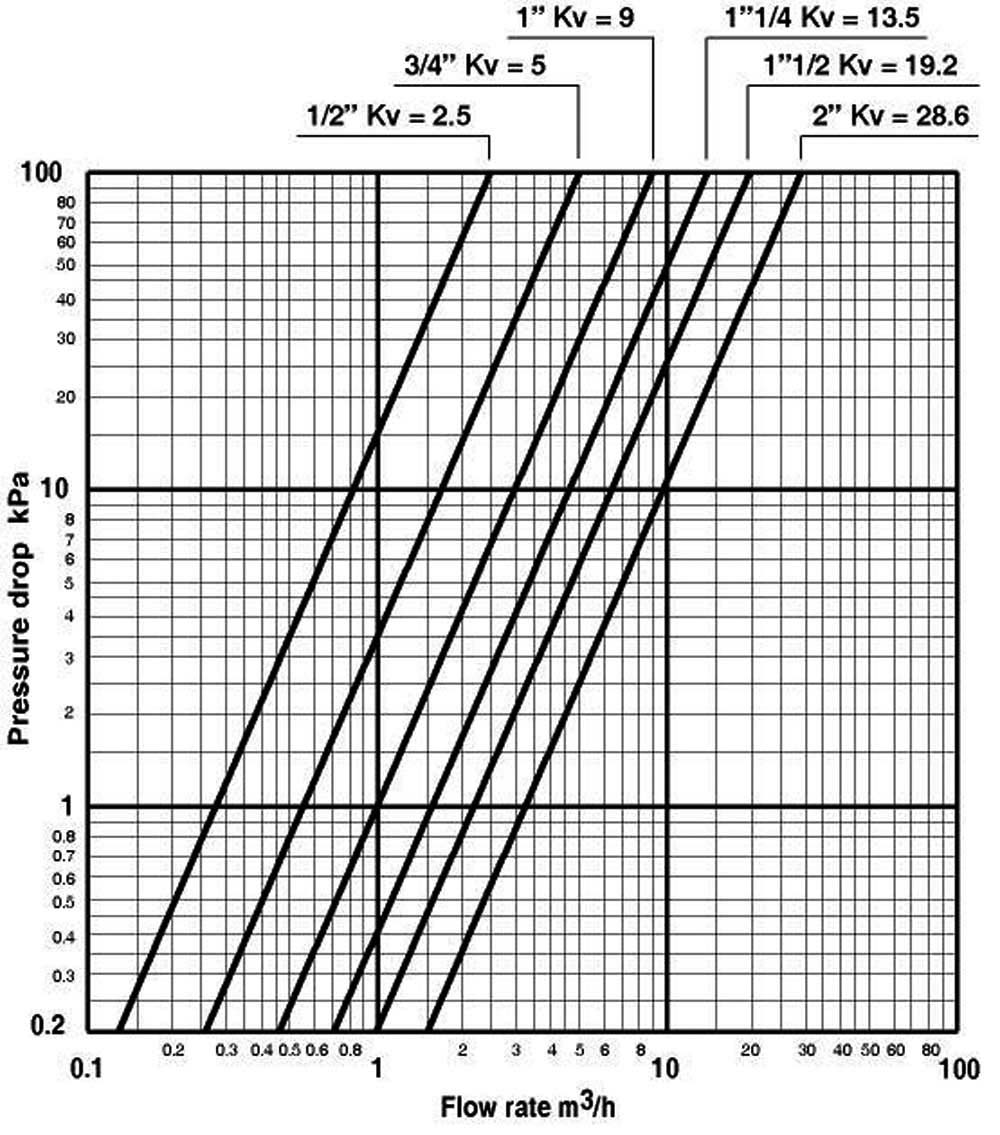

PRESSURE DROP
|
|
|
