SINGLE-JET VOLUMETRIC METERS WITH PULSE TRANSMITTER

KUF ... - KUC ...

 Path - First page - Products - Pulse Transmitter-Type Volumetric Counters - KUF - KUC

APPLICATION

Volumetric turbine meter with multiple jet for use in combination with IEB ... and IET ... integrators for metering thermal and/or refrigeration energy or for metering consumption of hot or cold water.

FEATURES

  • PN 16.

  • Includes male threaded unions.

  • Mounting:

    • Horizontal in Class B.

    • Vertical in Class A.

  • Includes reed pulse transmitter.

  • Connecting cable 2 x 0.5 mm2 x 2 mt.

  • Protection: IP 68.

                Pulse transmitter
Code   DN inches Lung. (1) mm Qn m3/h Qmax m3/h Qt  l./h Qmin l./h pul/l (K) pul/m3 l/pul Data sheet
T max 30 °C

KUF 15D (2)

  1/2" 110 1.5 3 120 30 0.1 100 10 H 611

KUF 20D (2)

  3/4" 130 2.5 5 200 50 0.1 100 10

KUF 25C (2)

  1" 160 3.5 7 280 70 0.01 10 100

KUF 32C

  1"1/4 160 5 10 400 100 0.01 10 100
T max 90 °C
KUC 15D (3)   1/2" 110 1.5 3 120 30 0.1 100 10 H 611
KUC 20D (3)   3/4" 130 2.5 5 200 50 0.1 100 10

KUC 25C

  1" 160 3.5 7 280 70 0.01 10 100

KUC 32C

  1"1/4 160 5 10 400 100 0.01 10 100

  • (1) - Length without unions.

  • (2) - EEC 75/33 approved for cold water.

  • (3) - EEC 79/830 approved for hot water.

  • Qmax ­ Maximum temporary flow measurable by meter

  • Qn ­ Nominal flow: Maximum continuous flow measurable by meter.

  • Qt ­ Transition flow: minimum limit with error less than ± 2%.

  • Q min ­ Minimum limit flow: minimum limit with error less than ± 5%.

FOR APPLICATION ON DISTRICT HEATING SITES,
THE USE OF MECHANICAL VOLUMETRIC METERS IS NOT RECOMENDED

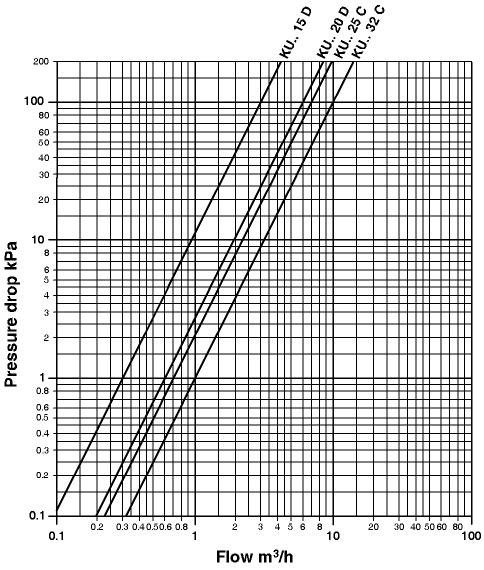

PRESSURE DROP IN VOLUMETRIC METERS WITH PULSE TRANSMITTER

100 kPa = 10 mWG = 1 bar
