APPLICATION
Volumetric turbine meter with multiple jet for
use in combination with IEB 7.. and IET
7.. integrators for metering thermal and/or refrigeration energy or
for metering consumption of hot or cold water.
FEATURES
-
PN 16.
-
Includes male threaded unions.
-
KMR 50CF, KMS 50CF flanged.
-
KMP ...: approved in class
B.
-
KMR …, KMS …, KMS U …, KMS
D …: approved in class A.
-
Includes reed pulse transmitter.
-
Connection cable 2 x 0.5 mm²
x 2 m.
-
Protection: IP 68.
| Code |
|
DN inches |
Length
(1) mm |
Qn
m3/h |
Qmax m3/h |
Qt l/h |
Qmin
lt./h |
Kws
m3/h |
∆p
Qn kPa |
Pulse
transmitters |
Data
sheet |
| i/l
(K) |
i/m3 |
l/i |
| T
max 30 °C. Horizontal |
| T
max 120 °C Horizontal |
| KMS
15D |
|
1/2" |
165 |
1.5 |
3 |
150 |
30 |
3 |
10.5 |
0.1 |
100 |
10 |
H
622 |
| KMS
20D |
|
3/4" |
190 |
2.5 |
5 |
250 |
50 |
5 |
14.5 |
0.1 |
100 |
10 |
| KMS
25C |
|
1" |
260 |
3.5 |
7 |
280 |
65 |
7 |
23 |
0.01 |
10 |
100 |
| KMS
32C |
|
1"1/4 |
260 |
6 |
12 |
480 |
90 |
12 |
24 |
0.01 |
10 |
100 |
| KMS
40C |
|
1"1/2 |
300 |
10 |
20 |
1,000 |
160 |
20 |
21 |
0.01 |
10 |
100 |
| KMS
50C |
|
2" |
270 |
15 |
30 |
1,200 |
200 |
30 |
22 |
0.01 |
10 |
100 |
| KMS
50CF (2) |
|
50
mm. |
270 |
15 |
30 |
1,200 |
200 |
30 |
22 |
0.01 |
10 |
100 |
| T
max 120 °C Vertical up |
| KMS
U15D |
|
3/4" |
105 |
1.5 |
3 |
150 |
30 |
3 |
10.5 |
0.1 |
100 |
10 |
H
622 |
| KMS
U20D |
|
3/4" |
105 |
2.5 |
5 |
250 |
50 |
5 |
14.5 |
0.1 |
100 |
10 |
| KMS
U25C |
|
1" |
150 |
3,5 |
7 |
280 |
65 |
7 |
23 |
0.01 |
10 |
100 |
| KMS
U32C |
|
1"1/4 |
150 |
6 |
12 |
480 |
90 |
12 |
24 |
0.01 |
10 |
100 |
| KMS
U40C |
|
1"1/2 |
150 |
10 |
20 |
1,000 |
160 |
20 |
21 |
0.01 |
10 |
100 |
| T
max 120 °C Vertical down |
| KMS
D15D |
|
3/4" |
105 |
1.5 |
3 |
150 |
30 |
3 |
10.5 |
0.1 |
100 |
10 |
H
622 |
| KMS
D20D |
|
3/4" |
105 |
2.5 |
5 |
250 |
50 |
5 |
14.5 |
0.1 |
100 |
10 |
| KMS
D25C |
|
1" |
150 |
3.5 |
7 |
280 |
65 |
7 |
23 |
0.01 |
10 |
100 |
| KMS
D32C |
|
1"1/4 |
150 |
6 |
12 |
480 |
90 |
12 |
24 |
0.01 |
10 |
100 |
| KMS
D40C |
|
1"1/2 |
150 |
10 |
20 |
1,000 |
160 |
20 |
21 |
0.01 |
10 |
100 |
-
(1) - Length without unions.
-
(2) - PN 16 flanged connections.
-
Qn - Nominal flow: Maximum continuous
flow measurable by the meter.
-
Qmax - Maximum temporary flow
bearable by the meter.
-
Qt - Transition flow: minimum
limit with error less than ±3 %.
-
Qmin - Minimum flow limit: minimum
limit with error less than ±5 %.
-
Kvs - Flow coefficient: Flow in
m³/h with pressure drop of 100 kPa = 10 mWG = 1 bar.
-
∆p Qn - Pressure drop at
nominal flow Qn.

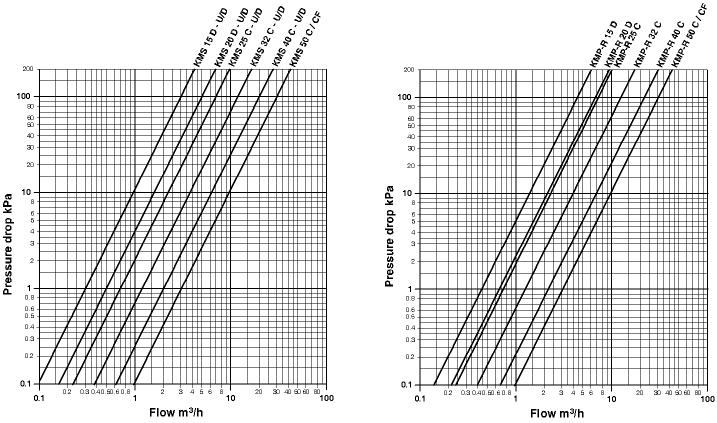

| PRESSURE
DROP IN VOLUMETRIC TURBINE-DRIVEN METERS WITH PULSE TRANSMITTER
MULTIPLE-JET
100 kPa = 10 mWG =
1 bar |
|
