VOLUMETRIC TURBINE METERS WITH MULTIPLE JETS AND PULSE TRANSMITTERS

KMF ... - KMC ...

 Path - First page - Products - Pulse Transmitter-Type Volumetric Counters - KMF - KMC -

APPLICATION

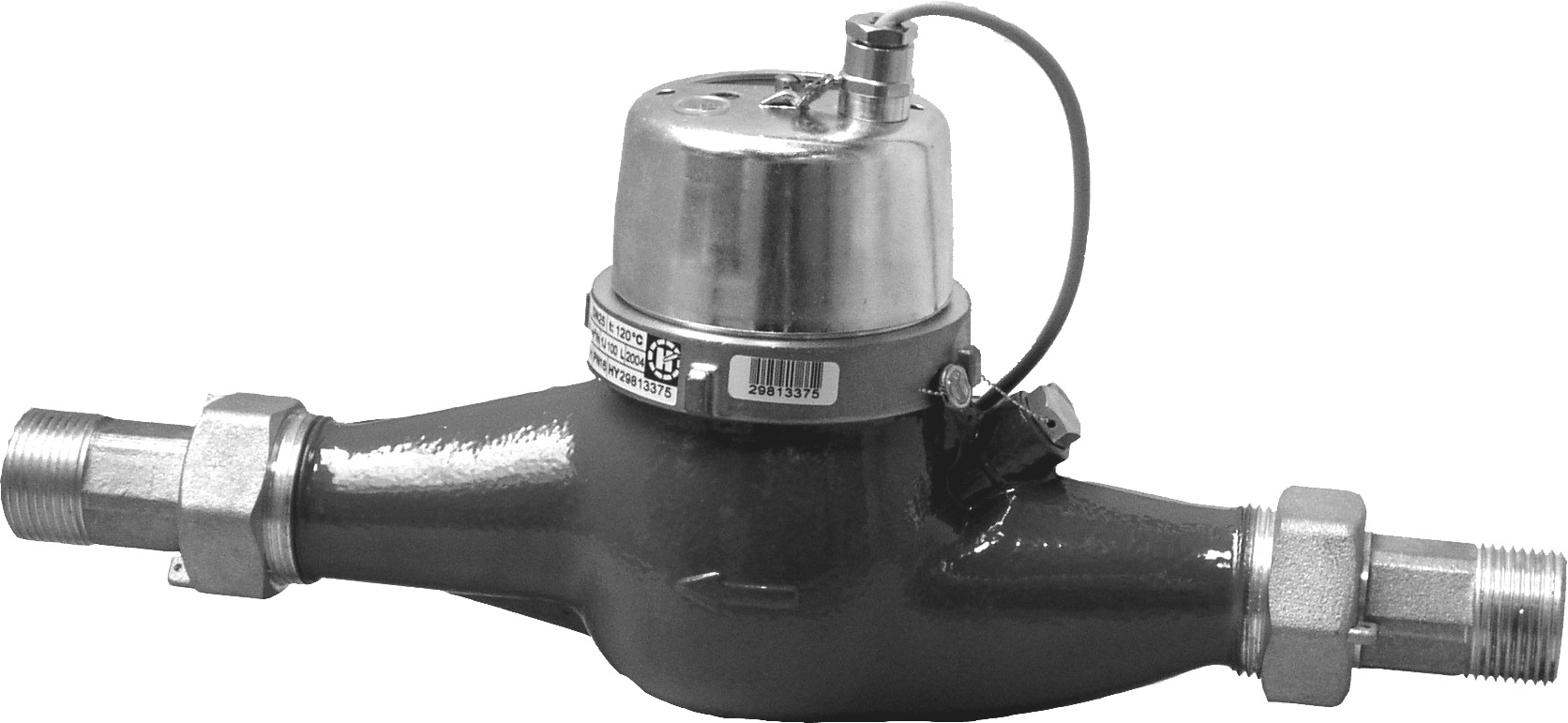

Volumetric turbine meter with multiple jet for use in combination with IEB 7.. and IET 7.. integrators for metering thermal and/or refrigeration energy or for metering consumption of hot or cold water.

FEATURES

  • PN 16.

  • Includes male threaded unions.

  • KMF ..., KMC ...: approved in class B Horizontal & class A Vertical

  • KMS approved in class A Horizontal only

  • Includes reed pulse transmitter.

  • Connection cable 2 x 0.5 mm² x 2 m.

  • Protection: IP 68.

Code   DN inches Length (1) mm Qn  m3/h Qmax m3/h Qt l/h Qmin lt./h Pulse transmitters Data sheet
i/l (K) i/m3 l/i
T max 30 °C. Horizontal
KMF 15D   1/2" 130 1.5 3 120 30 0.1 100 10 H 621
KMF 20D   3/4" 160 2.5 5 200 50 0.1 100 10
KMF 25C   1" 260 3.5 7 280 70 0.01 10 100
KMF 32C   1"1/4 260 5 10 400 100 0.01 10 100
KMF 40C   1"1/2 300 10 20 800 200 0.01 10 100
KMF 50C   2" 300 15 30 3,000 450 0.01 10 100
T max 90 °C Horizontal
KMC 15D   1/2" 130 1.5 3 120 30 0.1 100 10 H 621
KMC 20D   3/4" 160 2.5 5 200 50 0.1 100 10
KMC 25C   1" 260 3.5 7 280 70 0.01 10 100
KMC 32C   1"1/4 260 5 10 400 1000 0.01 10 100
KMC 40C   1"1/2 300 10 20 800 200 0.01 10 100
KMC 50C   2" 300 15 30 3,000 450 0.01 10 100

  • (1) - Length without unions.

  • (2) - PN 16 flanged connections.

  • Qn - Nominal flow: Maximum continuous flow measurable by the meter.

  • Qmax - Maximum temporary flow bearable by the meter.

  • Qt - Transition flow: minimum limit with error less than ±3 %.

  • Qmin - Minimum flow limit: minimum limit with error less than ±5 %.

  • Kvs - Flow coefficient: Flow in m³/h with pressure drop of 100 kPa = 10 mWG = 1 bar.

  • ∆p Qn - Pressure drop at nominal flow Qn.

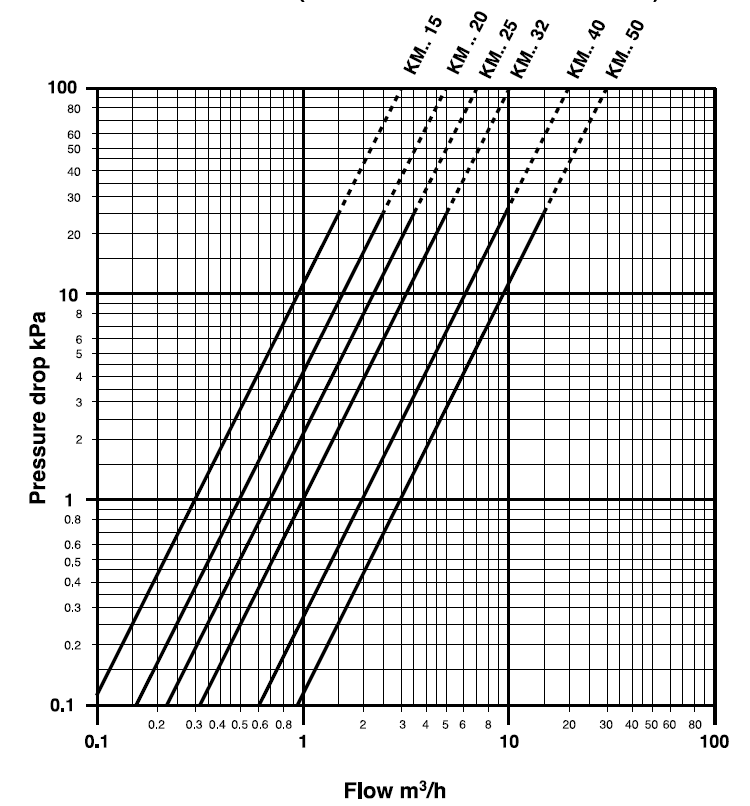

PRESSURE DROP IN VOLUMETRIC TURBINE-DRIVEN METERS WITH PULSE TRANSMITTER MULTIPLE-JET



100 kPa = 10 mWG = 1 bar
