2-PORT RADIATOR BALL VALVESPN 10 (5...90 °C)HGT ... |
|
|
||
|
Path - First page - Products - For Radiatores, for Zones - HGT |
||
APPLICATION
Rotary ball valves designed for On-Off or modulating control of radiators.
FEATURES
-
Body and ball in chromed brass.
| Connections | Suitable actuator CDR ... | ||||||||
| Code | DN body | Kvs (1) - m3/h | entry | outlet | Radiator union | (bar) (2) | sec (3) | Data sheet | |
| throughport | female | rafit | male | ||||||
| HGT 110 | 10 mm | 5.4 | 3/8" | 1/2" | 3/8" | 6 | 60 | M 811 | |
| HGT 115 | 15 mm | 6 | 1/2" | 3/4" | 1/2" | 6 | 60 | ||
| HGT 120 | 20 mm | 11 | 3/4" | 1" | 3/4" | 6 | 60 | ||
| HGT 125 | 25 mm | 25.7 | 1" | 11/4" | 1" | 6 | 60 | ||
| by pass | male | male | |||||||
| HGT 210 | 10 mm | 2.4 | 3/8" | 1/2" | 3/8" | 6 | 60 | M 811 | |
| HGT 215 | 15 mm | 2.6 | 1/2" | 3/4" | 1/2" | 6 | 60 | ||
| HGT 220 | 20 mm | 5 | 3/4" | 1" | 3/4" | 6 | 60 | ||
| HGT 225 | 25 mm | 11.7 | 1" | 11/4" | 1" | 6 | 60 | ||
-
(1) : Kvs Flow coefficient: Flow in m3/h with valve open and pressure drop of 100 kPa - 100 kPa. = 10 mWG = 1 bar
-
(2) : bar Maximum pressure differential (∆p max) permitted by actuator.
-
(3) : s Time (seconds) necessary for actuator to make the complete valve run.

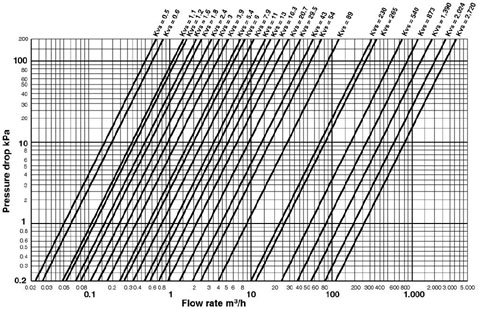

PRESSURE DROP
