2-, 3- and 4-PORT ZONE BALL VALVES PN 10 (5...90 °C)HGM ... - HMM ... |
|
|
|
|
||
|
Path - First page - Products - For Radiatores, for Zones - HGM / HMM |
|||
APPLICATION
Rotary ball valves for shut-off in zoned installations. Suitable for mounting on modular manifolds.
FEATURES
-
Body and ball in chromed brass.
-
Supplied with male connections for flat unions.
-
HMM 4.. : with adjustable.
| Suitable actuator CDK 06. - CDR 06. | |||||||||
| Code | DN body | Kvs (1) - m3/h | Connections | (bar) (2) | s (3) | Data sheet | |||
| 2 port | female | male | |||||||
| HGM 210 | 3/8" | 5.4 | 3/8" | 3/8" | 6 | 60 | M 812 | ||
| HGM 215 | 1/2" | 6 | 1/2" | 1/2" | 6 | 60 | |||
| HGM 220 | 3/4" | 11 | 3/4" | 3/4" | 6 | 60 | |||
| HGM 225 | 1" | 25.7 | 1" | 1" | 6 | 60 | |||
| 2 port | male | male | |||||||
| HMM 210 | 3/8" | 5.4 | 3/8" | 3/8" | 6 | 60 | M 812 | ||
| HMM 215 | 1/2" | 6 | 1/2" | 1/2" | 6 | 60 | |||
| HMM 220 | 3/4" | 11 | 3/4" | 3/4" | 6 | 60 | |||
| HMM 225 | 1" | 25.7 | 1" | 1" | 6 | 60 | |||

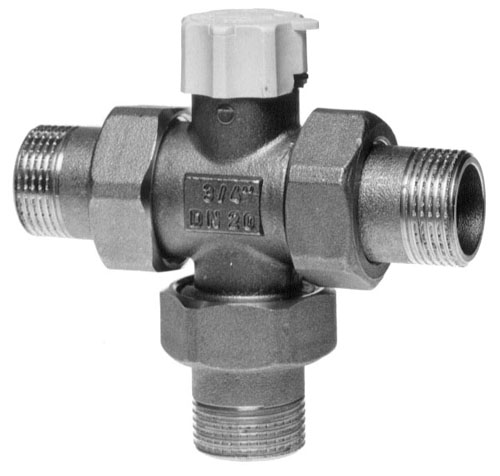

| 3 port |  |
 |
3 males | ||||||
| HMM 320 | 3/4" | 11 | 3 | 3/4" | 6 | 60 | M 813 | ||
| HMM 325 | 1" | 25.7 | 6.5 | 1" | 6 | 60 | |||
| 4 port |  |
 |
4 males | ||||||
| HMM 410 | 3/8" | 5.4 | 1.3 | 3/8" | 6 | 60 | M 814 | ||
| HMM 415 | 1/2" | 6 | 1.5 | 1/2" | 6 | 60 | |||
| HMM 420 | 3/4" | 11 | 3 | 3/4" | 6 | 60 | |||
| HMM 425 | 1" | 25.7 | 6.5 | 1" | 6 | 60 | |||
-
(1) : Kvs Flow coefficient: Flow in m3/h with valve open and pressure drop of 100 kPa. - 100 kPa = 10 mWG = 1 bar
-
(2) : bar Maximum pressure differential (∆p max) permitted by actuator.
-
(3) : sec Time (seconds) necessary for actuator to make the whole valve run.
PRESSURE DROP
