N.C. GAS SOLENOID VALVES

GNC ...

 click on picture to enlarge

 Path - First page - Products - Gas Solenoid Valves & Accessories - GNC

APPLICATION

Without power they are closed; when powered they are open. Approved Class A Group 2: GASTEC PIN: 63AQ1350, October 1995.

For replacement coils please click here.

FEATURES

  • Constructed to EN standards.

  • Protection IP 54.

  • Aluminium body.

  • Working temperature: ­15 ... +60 °C.

  • Mounted with coil axis within 90° of vertical.

      Power supply   Flow rate m3/h (2)
Code   DN V W P.max (1) mbar 0.5 mbar 1 mbar Data sheet
  screwed
GNC 815   1/2" 230 V ~ 25 200 2.8 4 G 911
GNC 415   1/2" 24 V ~/– 16 200 2.8 4
GNC 215   1/2" 12 V ~/– 16 200 2.8 4

GNC 820   3/4" 230 V ~ 45 360 5.5 8 G 911
GNC 420   3/4" 24 V ~/– 30 200 5.5 8
GNC 220   3/4" 12 V ~/– 30 200 5.5 8

GNC 825   1" 230 V ~ 45 360 8.4 12 G 911
GNC 425   1" 24 V ~/– 30 200 8.4 12
GNC 225   1" 12 V ~/– 30 200 8.4 12

GNC 832   1"1/4 230 V ~ 80 360 14 20 G 911
GNC 432   1"1/4 24 V ~/– 65 200 14 20
GNC 232   1"1/4 12 V ~/– 65 200 14 20

GNC 840   1"1/2 230 V ~ 80 360 19 27 G 911
GNC 440   1"1/2 24 V ~/– 65 200 19 27
GNC 240   1"1/2 12 V ~/– 65 200 19 27

GNC 850   2" 230 V ~ 80 360 28 40 G 911
GNC 450   2" 24 V ~/– 65 130 28 40
GNC 250   2" 12 V ~/– 65 130 28 40

  flanged
GNC 865   65 (4 holes) 230 V ~ 190 200 55 80 G 911
GNC 465   65 (4 holes) 24 V ~/– 150 200 55 80

GNC 880   80 (8 holes) 230 V ~ 190 200 70 100 G 911
GNC 480   80 (8 holes) 24 V ~/– 150 200 70 100

GNC 8100   100 (8 holes) 230 V ~ 280 200 110 155 G 911
GNC 4100   100 (8 holes) 24 V ~/– 200 200 110 155

  • (1) ­ Maximum working pressure

  • (2) ­ Flow of methane with pressure drop of 0.5 mbar (5mmWG) and 1 mbar (10 mmWG).

  • 100 mbar = 10 kPa = 1,000 mm.WG

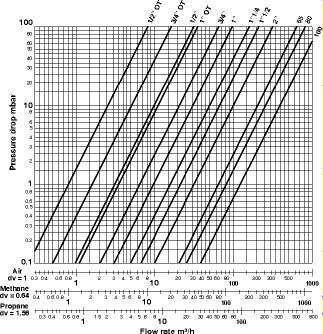

PRESSURE DROP GNC

FEATURES OF GAS SOLENOID VALVES

Model

Operation

Advantages

Disadvatages
 Normally closed GNC

  • Without power closes.

  • With power opens.

  • Ideal for boiler plants.

  • In event gas leak, detector switches off power to valve.

  • Power returns only with manual re-set of detector.

  • In event mains supply failure valve closes; when power returns valve re-opens automatically.

  • Not recommended for kitchens without thermo-couple.

  • In event failure of mains power, valve closes and flame goes out; when power returns valve re-opens and gas escapes causing a dangerous situation.
