Designed for temperature control of a
boiler with modulating 3-wire burner. Also suitable for modulating condensation
boilers.
-
compatible.
-
compatible.
Essential accessories:
Optional accessories:
-
1 outside detector.
-
1 flue gases detector.
FEATURES
-
Power supply: 230 V ~.
-
Consumption: 5 VA.
-
DIN 105 x 115 modular enclosure.
-
Protection: IP 40.
-
Digital
programming by means of 4 operating keys and alphanumeric display.
-
Boiler
temperature control:
-
Variable: according to
temperature requested by DHW/heating/etc circuits;
-
Compensated: in relation to
outside tempertaure with desired room temperature Normal 1 ... 5,
Setback 1-2, Frost protection;
-
Fixed Point with desired Flop
temperature Flow 1-2;
-
By remote control with choice
between: Off, Frost Protection, Room Normal 1, Room Setback 1, Flow 1;
-
Minimum and maximum limits
boiler temperature.
-
Control of burner by On-Off and
3-wire modulating (common - increases - decreases).
-
On-Off control of boiler shut-off
valve.
-
On-Off control of pump (boiler,
manifold, heating plant).
-
Timed events programming with
seven 24hour and two 7-day programmes.
-
Programming with dates with 25
annual periods, one Special period and heating season.
-
Automatic switching Greenwith Mean
Time (GMT) to British Summer (BST).
-
Eco-Off.
-
4 ON-Off inputs: - 3 for
signalling alarms or status; - 1 for signalling burner lockout.
-
1 input for measurement
temperature flue gases.
-
Alarms for controller fault and for
short or open detector circuits.
Code |
|
Description |
Data sheet |
DTC 628 |
|

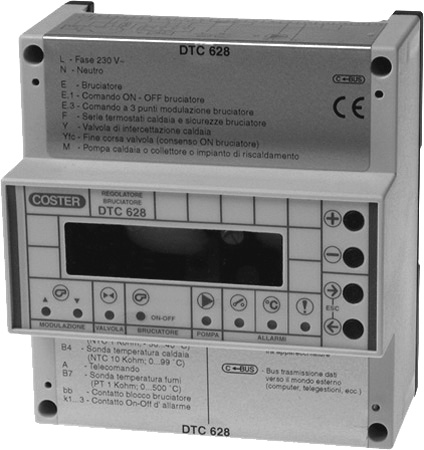

Temperature controller for a
modulating burner. |
A
511 |
DETECTORS & ACCESSORIES
Code |
|
Description |
Range |
Sensing element |
Data sheet |
SIH 010 |
|
Immersion
temperature detector. |
0 ...
99 °C |
NTC 10 kΩ |
N
140 |
SAE
001 |
|
Outside
temperature detector. |
-30 ...
40 °C |
NTC 1 kΩ |
N
120 |
STF
001 |
|
Flue
gases temperature detector. |
0 ...
500
°C |
Pt 1 kΩ |
N
165 |
CDB 301 |
|
Remote
control for chancing programme. (DIN
3 units). |
– |
– |
N
711 |
|
