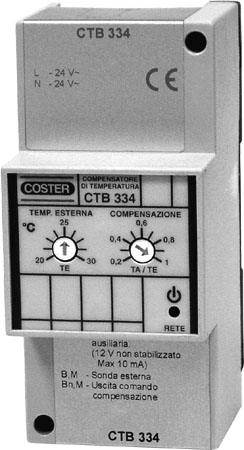

SUMMER TEMPERATURE COMPENSATOR FOR RTB 645 CONTROLLERS

CTB 334

 click on picture to enlarge

 Path - First page - Products - Thermostats and ambient controllers - CTB 334

APPLICATION

CTB 334 compensator is designed for use in zones where room temperature is regulated by RTB 645 controllers.

FEATURES

  • Power supply: 24 V ~.

  • Consumption: 3 VA.

  • DIN 53 x 115 modular enclosure.

  • Protection: IP 40.

  • Can compensate up to maximum 30 RTB 645 controllers connected in parallel.

Code

Description

Data sheet
CTB 334

Summer tempersture compensator for RTB 645 controllers.

B 524

DETECTORS & ACCESSORIES

Code   Description Range

Sensing element

 Data sheet
SAA 010   Waterproof room temperature sensor used as outside temperature detector. (only for CTB 334) 0 ... 100 °C NTC 10 kΩ N 115
