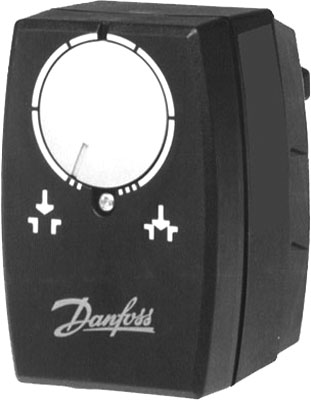

REVERSIBLE LINEAR ACTUATOR FOR VRS 3.. VALVES

CLS 07.

 click on picture to enlarge
 Path - First page - Products - Balanced pressure water - CLS 07

APPLICATION

CLS ... actuator is designed to operate, with linear movement, seat type VRS 3.. valves used in heating and air-con-ditioning plants with fluid temperatures from 1 ... 120 °C.

FEATURES

  • Power supply: 230 - 24 V ~.

  • Three-wire electric control (Common, Opens, Closes).

  • Protection: IP 42.

  • Valve max. fluid temperature: 120°C.

            Valves (up to DN)
Code   Power supply  V~   (VA) Speed s / mm Max. run mm Min. Force N VRS 3.. Data sheet
CLS 078   230 (2) 14 5.5 200 40 (1"1/2) M 254
CLS 074   24 (2) 14 5.5 200 40 (1"1/2)
