APPLICATION

Permit adjusting the required values for the physical magnitudes controlled or the programs in use.

FEATURES

  • Shockproof plastic enclosure: 80 x 80 x 26 mm.

  • Wall-mounting.

Code   Description

Suitable controllers

 Application range Data sheet

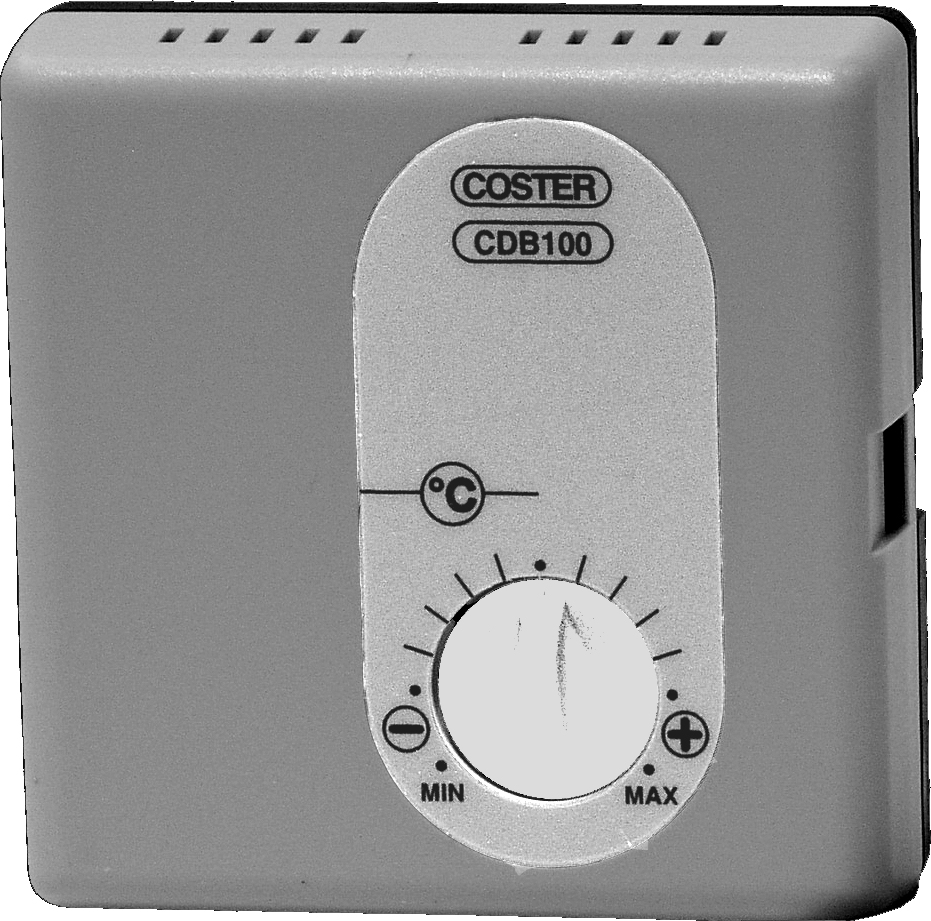

CDB 100

  Temperature set-point adjuster with NTC 10 kΩ room sensing element.

DRU 314, DRU 614, DTF 31, DTT 318, RTB 645, RTF 31, XTA 624, XTR 628, XTU 614, XTU 618, XTU 644.

–5 ... 5 °C N 710

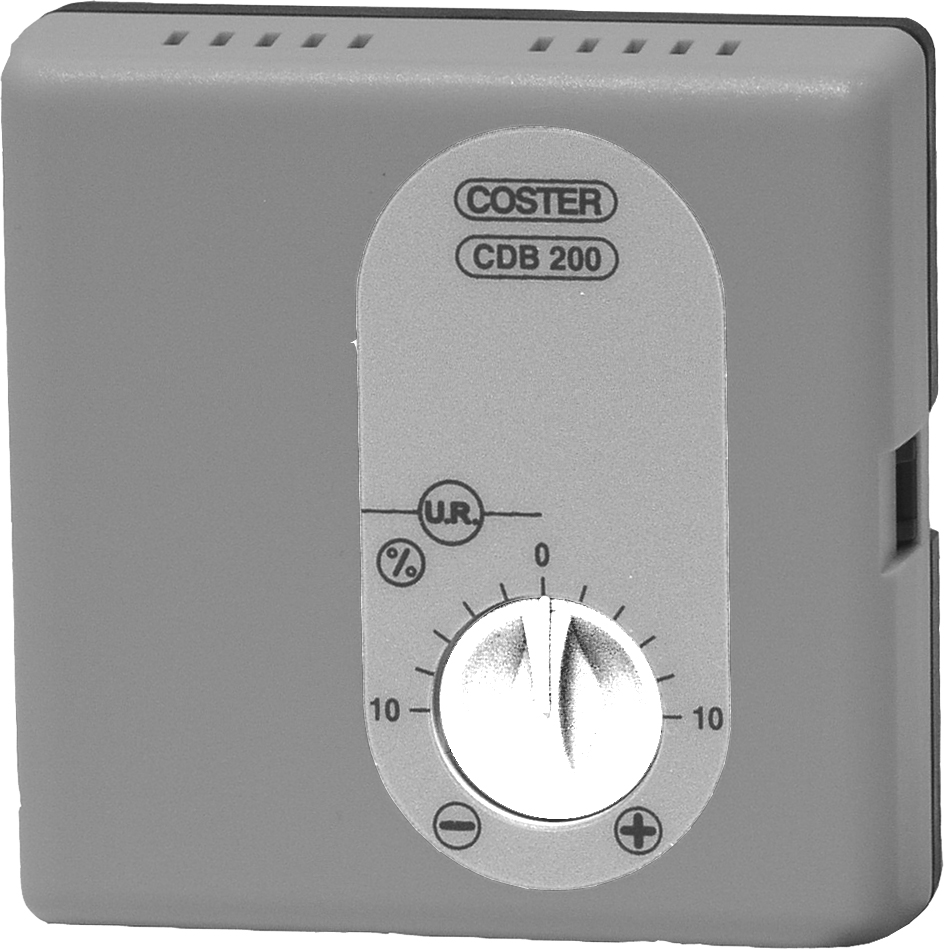

CDB 200

  Humidity set-point adjuster with NTC 10 kΩ room sensing element.

XTU 614, XTU 644.

 –10 ... 10 %  N 710


CDB 300

  Program changer.

RTE 643, RTC 604, XSE 600, XSE 602, XTE 600, XTE 602, XTE 611, XTT 608.

 – N710


CDB 301

  Program changer
(DIN 3 units).

DTC 628.

– N 711

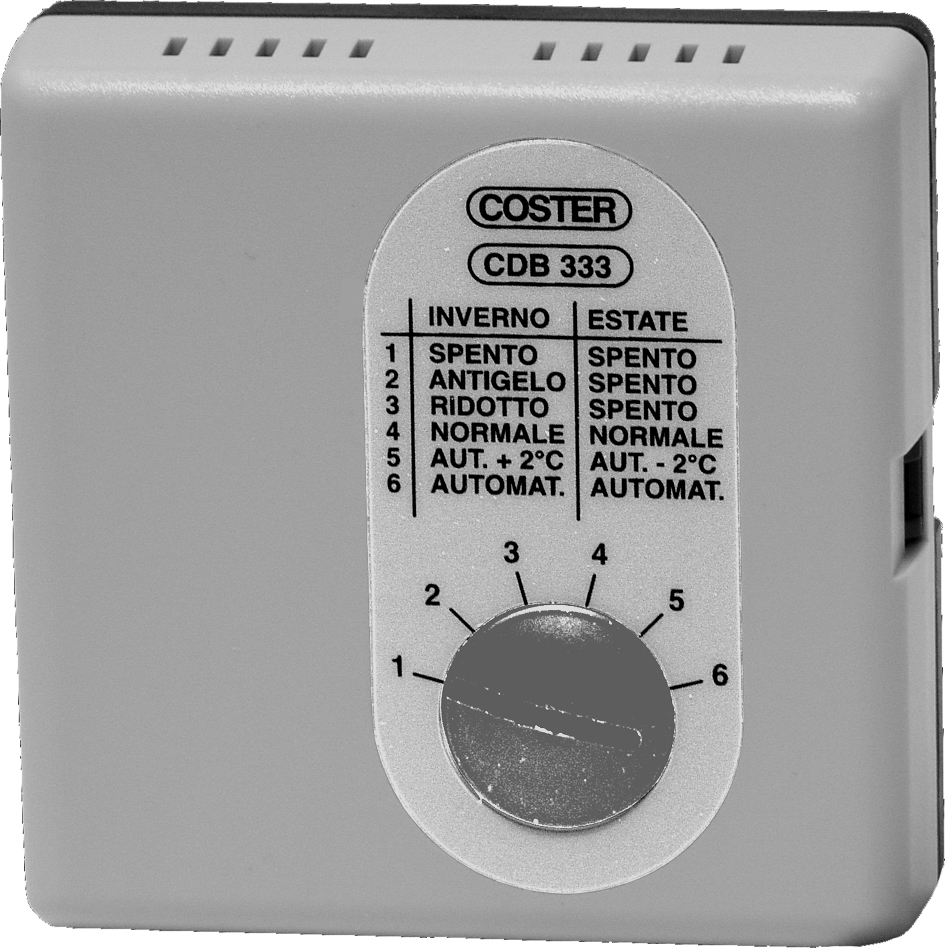

CDB 333

  Program changer.

XCS 633, XTU 618.

 – N 710


CDB 340

  Temperature set-point adjuster.

RTE 98.

–5 ... 5 °C N 710
