FLANGES WITH NECK FOR FLANGED VALVES PN 6AFC ... |
 |
|
Path - First page - Products - Ball, butterfly, slipper - AFC |
||
APPLICATION
- PN6 UNI 2280
-

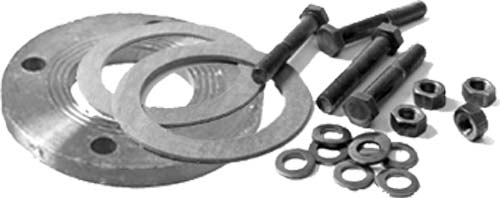

Packs containing1 flange and including seals, bolts, nuts and washers.
| Including: | |||||||||||
| Code | Seal | Bolts (2-port) | Bolts (3-and 4-port) | Nuts | Washers | ||||||
| No. | mm | No. | mm | No. | mm | No. | mm | No. | mm | ||
| AFC 040 | 1 | 85 x 45 x 2 | 0 | – | 4 | 12 M x 55 | 4 | 12 M | 8 | ø 12 | |
| AFC 050 | 1 | 95 x 57 x 2 | 2 | 12 M x 80 | 4 | 12 M x 55 | 4 | 12 M | 8 | ø 12 | |
| AFC 065 | 1 | 115 x 76 x 2 | 2 | 12 M x 80 | 4 | 12 M x 55 | 4 | 12 M | 8 | ø 12 | |
| AFC 080 | 1 | 132 x 89 x 2 | 2 | 16 M x 100 | 4 | 16 M x 60 | 4 | 16 M | 8 | ø 16 | |
| AFC 100 | 1 | 152 x 108 x 2 | 2 | 16 M x 100 | 4 | 16 M x 60 | 4 | 16 M | 8 | ø 16 | |
| AFC 125 | 1 | 182 x 133 x 2 | 4 | 16 M x 120 | 8 | 16 M x 60 | 8 | 16 M | 16 | ø 16 | |
| AFC 150 | 1 | 207 x 159 x 2 | 4 | 16 M x 120 | 8 | 16 M x 60 | 8 | 16 M | 16 | ø 16 | |
| AFC 175 | 1 | 230 x 185 x 3 | 8 | 16 M x 140 | – | – | 8 | 16 M | 16 | ø 16 | |
| AFC 200 | 1 | 255 x 210 x 3 | 8 | 16 M x 140 | – | – | 8 | 16 M | 16 | ø 16 | |
