ACCESSORIES FOR DAMPER ACTUATORS  CS. ... - CF. ...

Path - First page - Products - Damper Actuators

APPLICATION

Suitable for coupling to dampers with actuators: CSL ..., CSN ..., CSS ..., SCG ..., CFT ..., CFL ..., CFA ...



Code   Description Data sheet Images

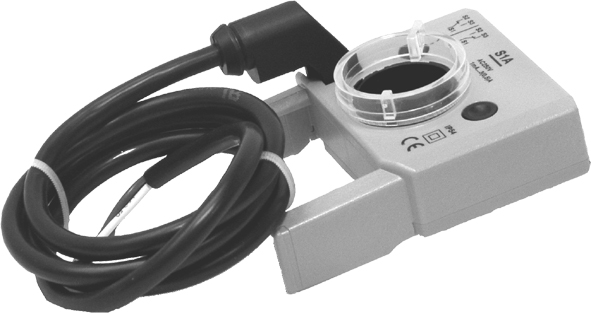

FCS 123   End-of-run auxiliary with 1 SPDT switch 3(0.5) A, 250 V~ for CS ... actuators. E 960
FCS 223   End-of-run auxiliary with 2 SPDT switches 3(0.5) A, 250 V~ for CS ... actuators.

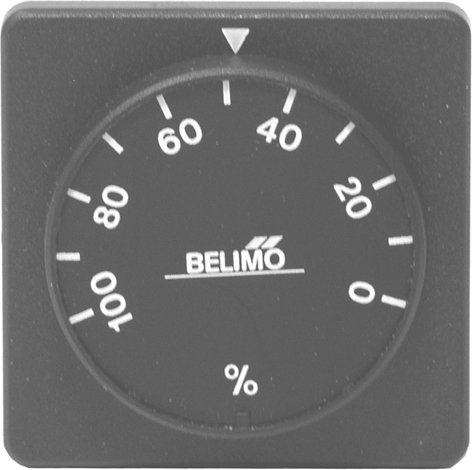

PCS 104   Positioner 0 ... 100% for damper actuators 0 ... 10V- (max. 10 actuators).
KH 8   Universal lever for damper shafts (if round: 10 ... 18 mm; if square: 10 ... 14 mm).
KH-AM   Universal lever for actuators.

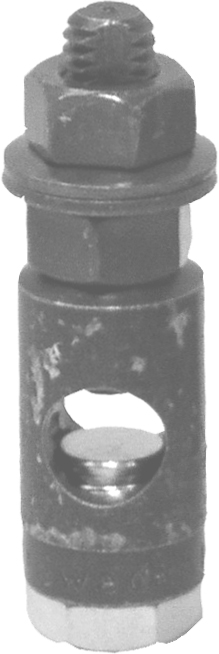

KG 10   Ball joint for connection (use rods with max. diameter 10 mm).

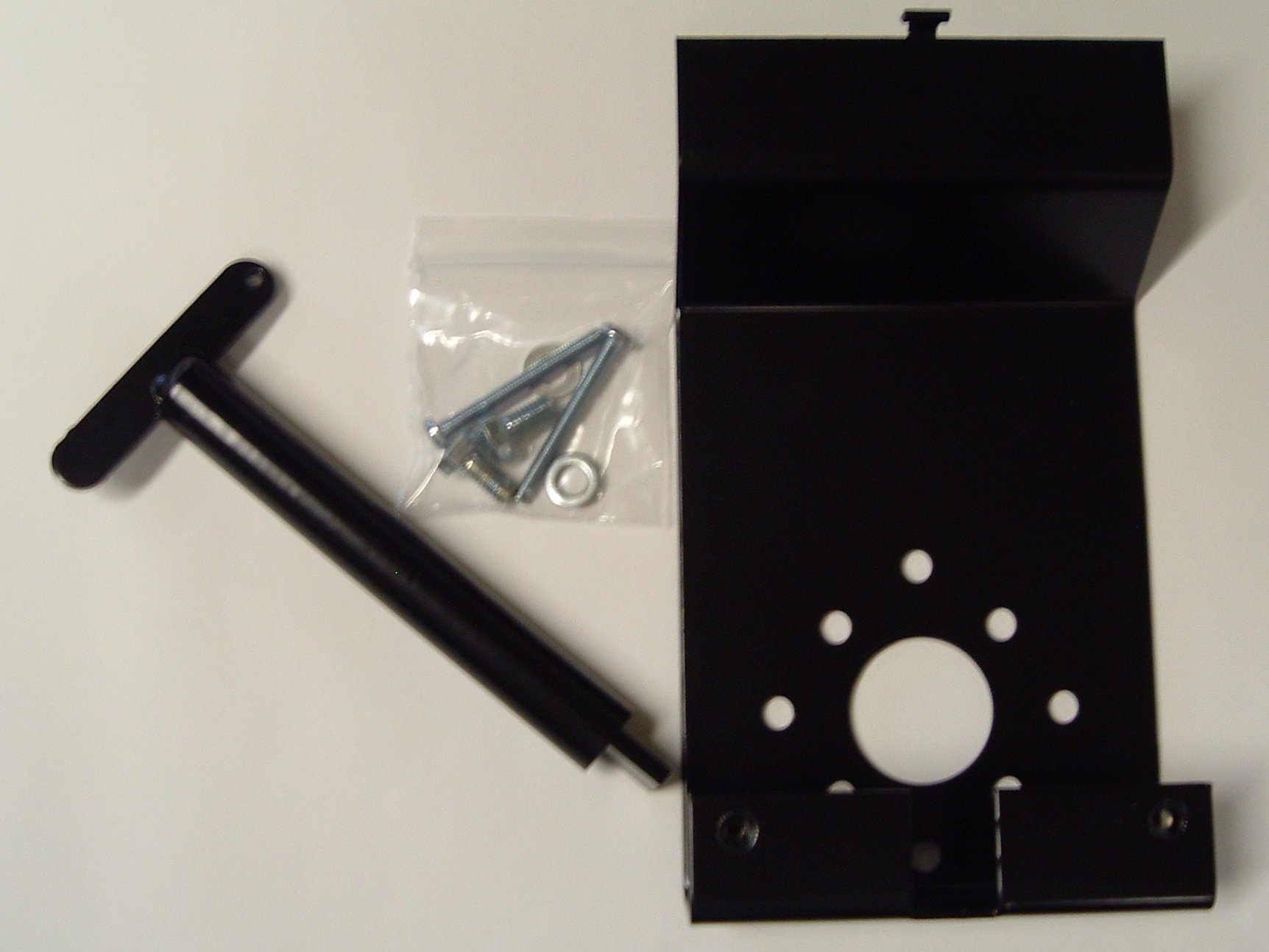

JCL 100   Kit to mount damper actuators onto Coster rotary valves (Small plate)
JCL 200   Kit to mount damper actuators onto Coster rotary valves (Large plate)





Accessories required for coupling actuators to dampers

  • 1 actuator for 1 damper:

    • direct installation on damper shaft - no accessories required.

    • remote mounting: 1 KH-AM, 1 KHB, 2 KG 10 & 1 rod(1).

  • 1 actuator for 2 dampers:

    • direct installation on shaft of a damper: 1 KH-AM, 1 KH8, 2 KG 10 & 1 rod(1).

    • remote installation: 1 KH-AM, 2 KHB, 3 KG 10 & 2 rods(1).

  • 1 actuator for 3 dampers:

    • direct installation on shaft of a damper: 1 KH-AM, 2 KH8, 3 KG 10 & 2 rods(1).

    • remote installation: 1 KH-AM, 3 KH8, 4 KG 10 and 3 rods(1).

(1) Connection rods between universal joints: 8 -10 mm rod generally available at ironmongers.
