DIAGRAM PRESSURE DROP AND SIZING |

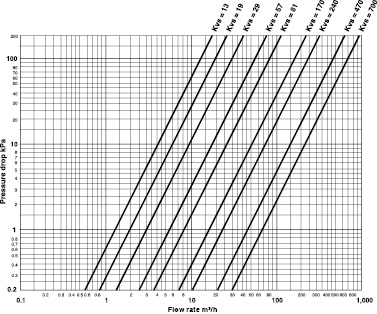

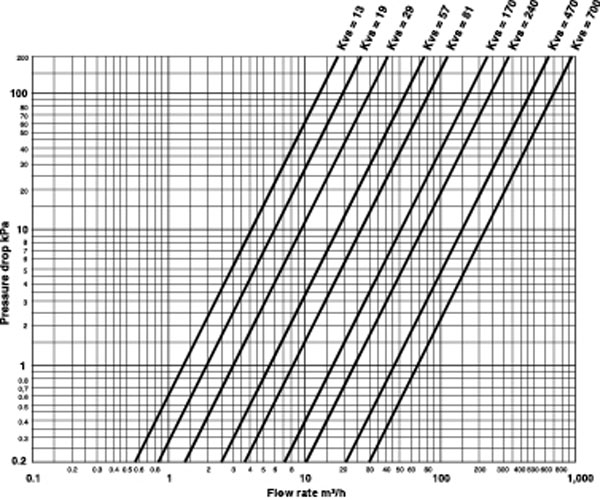

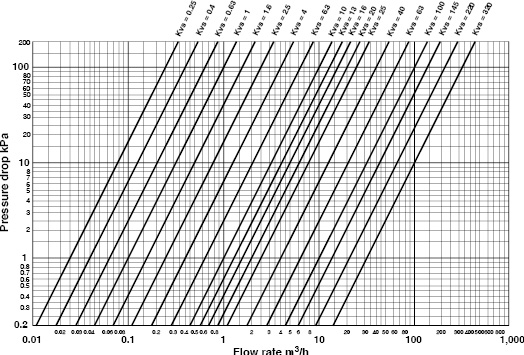

| PRESSURE DROP IN BALL VALVES AND CERAMIC DISC VALVES |
|
|
| PRESSURE DROP IN 2F ... BUTTERFLY VALVES |
|
|
| PRESSURE DROP IN VSG ... - VSF ... - VFG ... - VFF ... SLIPPER VALVES |
|
|
| PRESSURE DROP IN VMV 3.. - VRG 3.. - VRB 3.. - VL 3.. - VF 3.. - VM 2.. - VB 2.. SLIPPER VALVES |
|
|

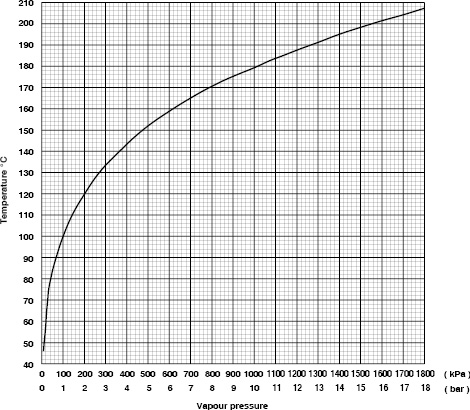

| PRESSURE - TEMPERATURE DIAGRAM FOR SATURATED STEAM |
|
|

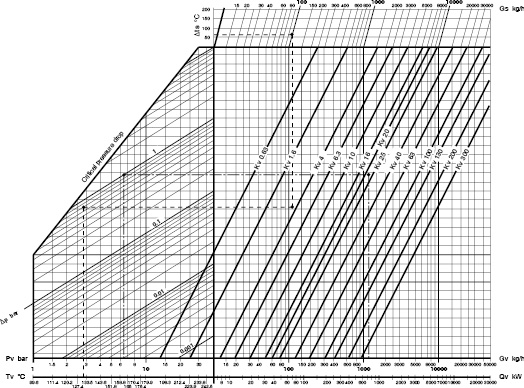

| SIZING CHART FOR STEAM VALVES VBS 2.. - VBG 2.. |
|
|
